Paper ppt: Security in Blue tooth

Abtract of this computer paper-presentations : (Security in Blue tooth)
As the technology becomes more sophisticated, the need for facile wireless communication has led the human brain to renovate the orthodoxy bottlenecked conventions being used. Computing will inevitably be indispensable and ubiquitous – a scenario that has no place for wires. Bluetooth provides several irksome issues that have plagued implementation of wireless technology handling both data and voice transmissions, allowing such capabilities as a mobile hands-free head set for voice calls and print-to-fax, laptop and cell phone address book applications. More than just a replacement for Proprietory cables, Blue tooth wireless technology provides a Universal bridge to existing data networks LAN’s, mobile phone network and the internet for a host of home applications and portable hand-held interfaces.
Bluetooth enabled electronic devices connect and communicate wirelessly via short-range, ad-hoc networks called ‘Piconets’. Each unit can simultaneously communicate with up to seven other units in a piconet. These piconets are established dynamically and automatically as blue tooth devices enter and leave the radio proximity. To replace messy wires, make information transfer automatic without synchronization cradles and introduced many applications Bluetooth excels at connecting devices irrespective of their locations and can even talk through walls
This paper elucidates what is Blue tooth? And the concept behind the Blue tooth and the Bluetooth architecture, network topology, and mainly presents about blue tooth security architecture, flowcharts for authentication and authorisation, hacking concepts ,advantages ,drawbacks and its applications. With potential like that it’s no wonder that Bluetooth is set to become the fastest adopted technology in history.

What is Bluetooth?
Bluetooth is the global defacto standard for wireless connectivity based on low-cost, short-range radio link that resides on a micro chip. Bluetooth wireless technology is a system solution comprising hardware, software and Interoperability requirements. Bluetooth is a standard for a small, cheap radio chip to be plugged in to computers, printers, mobile phones etc. Bluetooth wireless technology eliminates the need for numerous, often Proprietary, cable attachments for connection of practically any kind of communication device.

Concept behind Bluetooth:
The basic concept behind the Bluetooth is to provide a universal short range wireless capability. It operates in free Industrial Scientific Medical(ISM) band from 2.400 GHz to 2.483GHz, available globally for unlicensed low-power uses. Two Bluetooth devices within 10m of each other can share up to 720kbps of capability. It has the transmission power of 1mW. Bluetooth is intended to support an open-ended list of applications, including data, audio, graphics and even video. For e.g. Audio devices can include headsets, cordless and standard phones, home stereos, and digital MP3 players. Bluetooth can provide consumers with the ability to

• Make calls from wireless headset connected remotely to a cell phone.
• Eliminate cables linking computers to printers, keyboards, and the mouse.
• Hook up MP3 players wirelessly to other machines to download music.
• Set up home networks so that a couch potato can remotely monitor air conditioning, the oven, and internet surfing.
• Call home from a remote location to turn appliances on and off, set the alarm, and Monitor activity

A device equipped with a Bluetooth radio establishes instant connection to another Bluetooth radio as soon as it comes into range. Bluetooth device supports both point-to-point and point-to-multipoint connections.

Architecture overview:
A block diagram of the Bluetooth protocol architecture is shown in Figure.

Figure 1: Bluetooth Architecture
The ‘core protocols’ form a five-layer stack consisting of the following elements:

• Radio: Specifies details of the air interface, including frequency, the use of frequency hopping, modulation scheme, and transmit power.
• Baseband: Concerned with connection establishment within a Pico net, addressing, packet format, timing, and power control.
• Link manager: responsible for link setup between Bluetooth devices and on going link management. This includes security aspects such as authentication and encryption, plus the control and negotiation of base band packet sizes.
• Logical link control and adaptation protocol (L2CAP): adapts upper-layer protocols to the base band layer.L2CAP provides both connectionless and connection-oriented services.
• Services discovery protocol (SDP): is device information, services, and the characteristics of the services can be queried to enable the establishment of a connection between two or more Bluetooth devices.

RFCOMM is the cable replacement protocol included in the Bluetooth specification. RFCOMM presents a virtual serial port that is designed to make replacement of cable technologies as transparent as possible. Serial ports are one of the most common types of communication interfaces used with computing and communications devices. Hence, RFCOMM enables the replacement of serial port cables with the minimum of modification of existing devices. RFCOMM provides for binary data transport and emulates EIA-232 control signals over the Bluetooth base band layer.EIA-232 is a widely used serial port interface standard.
Bluetooth specifies a telephony control protocol.TCS BIN (telephony control specification-binary) is a bit –oriented protocol that defines the call control signaling for the establishment of speech and data calls between Bluetooth devices. The host controller layer interfaces the Bluetooth hardware to the upper Logical Link Control and Adaptation Protocol (L2CAP). The L2CAP is followed by applications.

There are four basic parts to any Bluetooth system: Radio (RF) that receives and transmits data and voice, a Base band or link control unit that processes the transmitted and received data, link management software that manages the transmission and supporting application software.

Bluetooth radio:
The Bluetooth radio is a short distance, low power radio operating in the unlicensed spectrum of 2.4 GHz and using a nominal antenna power of 0 dBm (range 10mts) Optionally a range of 100 meters (about 328 feet) may be achieved by using an antenna power of 20 dBm. Data is transmitted at the rate of up to 1Mbps maximum. But communication protocol overhead limits the practical data rate to a little over 721 Kbps.
Radio communication is subjected to noise and interference, as the 2.4 GHz frequencies is shared between all devices in Pico nets. So the Bluetooth specification has solved this problem by employing what is called as spectrum spreading, in which the Bluetooth radio hops among different frequencies very quickly. There are 79 hops starting at 2.402 GHz; and stopping at 2.1.80GHz, each of which is displaced by 1 MHz. Frequency hoping also provides data security because two packets of data is never sent over the same frequency consecutively and the changing frequency is unpredictable.

Base band:
In wireless communication the baseband is the hardware that turns the radio signals (transmit/ received) into a digital form that can be processed by the host application. In other words it can convert the digital or voice data into a form that can be transmitted using a radio signal, according to a protocol that allows. Virtually all wireless communication accomplishes this feat by putting the data into Packets. It also contains information on how the data was compressed. When the data is received it is checked for accuracy, un-packetized, reassembled, de-composed & possibly filtered in some way . The baseband processor handles all the tasks & in Bluetooth it is called as Link Controller.

The Bluetooth link is the method of data transmission which supports two link types: Synchronous Connection Oriented (SCO) used primarily for voice communications and Asynchronous Connection Less (ACL) links for packet data. Each link type support sixteen different packet types that are used based on the application.

Link Controller& Link manager:
It a supervisory function that handles all the Bluetooth baseband functions and supports the Link manager. It sends &. Receives data, requests the identification of the sending device authenticates the link, sets up the type of link, determines what type of frame to use on a packet by packet basis, directs how devices will listen for transmissions from other devices or puts them on hold. It is software that runs on a microprocessor and manages the communication between. Bluetooth devices .Each Bluetooth device has its own Link Manager that discovers other remote Link Manager, & communicates with them to handle link setup, authentication, configuration & other protocols.

Network Topology
Bluetooth devices are generally organized into groups of two to eight devices called Piconets, consisting of a single master device and one or more slave devices. A device may additionally belong to more than one piconet, either as a slave in both or as a master of one piconet and a slave in another. These bridge devices effectively connect piconets into a scatternet. A diagram of a Bluetooth scatternet is shown in figure above. Bluetooth operates in the unlicensed ISM frequency band that is generally cluttered with signals from other devices-garage door openers, baby monitors, and microwave ovens, to name just a few. This pattern, moving through 1,600 different frequencies per second, is unique to the particular piconet. Each frequency “hop” is a time slot during which data packets are transferred. A packet may actually span up to five time slots, in which case the frequency remains constant for the duration of that transfer.

When wireless connection is used in communication the eavestroping is much easier. That’s why security and encryption is very important with Bluetooth devices. BT specifies security on several levels from base band to service level. Base band uses SAFER+ algorithms for security purposes. BT’s encryption engine requires master nodes BT address its slot clock and secret key i.e. that is shared by all the participant devices.
The Bluetooth specification includes security features at the link level. It supports authentication and encryption. These features are based on a secret link key that is shared by a pair of devices.

There are three security modes for a device to be operated:

• Security mode 1(non-secure): A device will not initiate any security procedure.
• Security mode 2(service-level enforced security): A device does not initiate security procedures before channel establishment at L2CAP level. This mode allows different and flexible access policies for applications, especially running applications with different security requirements in parallel.
• Security mode 3(link level enforced security): A device initiates security procedures before the link set-up at the LMP level is completed.
The security architecture provide a flexible framework which dictates when to involve a user and what actions the underlying BT protocol layers follow to support the desired security check-ups.

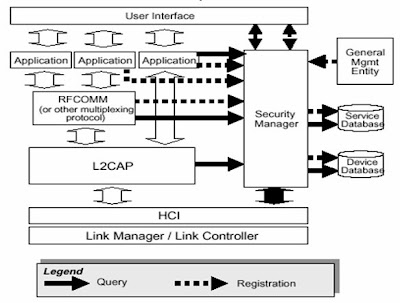

The general architecture is shown below:
In the above architecture the security manager is the key component. The main functions of security manager are:

Store security-related information on services.
• Store security-related information on devices.
• Answer access requests by protocol implementations or applications.
• Enforce authentication and/or encryption before connecting to the application.
• Initiate pairing and query PIN entry by the user. PIN entry might also be done by an application.

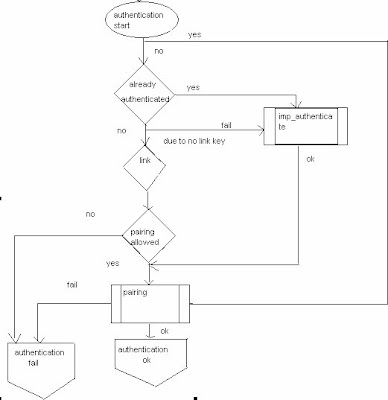

Authentication: It is the process of verifying ‘who’ is at the other end of the link. In BT this is achieved by the authentication procedure based on the stored link key or by pairing (entering a PIN).

Setting PIN codes:
After pairing the data transfer between these equipments is secure. The instruction to set PIN codes is as follows: The simplest way is to run btsrv on Bluetooth computers which prompt pairing .If we are not running btsrv command we can manually set PIN codes by btctl command.

• Use btctl command to find out and list the BT devices around your computer.
• Add pin code btctl addpin
Authorization: It is the process of deciding a device to be allowed to have access for the services provided by the master.

Device trust level:
Devices are distinguished based upon their trust levels:

• Trusted device: The device has been authenticated and a link key is stored and it is marked as “Trusted” in the device database.
• Untrusted Device: The device has been authenticated and a link key is stored but it is not marked as tru
• Unknown device: No security information is available for this device.
Security level of services:
The security level of a service is defined by three attributes:
• Authorization Required: Access is granted only to trusted or untrusted devices after an authorization procedure. Authorization always requires authentication.
• Authentication required: Before connecting to the application the remote device must be authenticated.
• Encryption required: The link must be changed to encrypted mode before access to the service is possible.

The authentication cannot be performed when the ACL is established. The authentication is performed when a connection request to a service is submitted.

The link manager connects request to L2CAP and this in turn requests access from the security manager which then look up’s in service database and the device database. If necessary security manager enforces authentication and encryption and then grants acce
ss. After granting access L2CAP continues to setup the action.

Bluejacking: This allows phone users to send business cards anonymously using BT wireless technology which doesn’t remove or alternate any data from device. To carry this bluejacking also the sending and the receiving devices must be within 10 meters of one another.
Phone owners who receive blue jack messages should refuse to add the contacts to their address books. The person who does bluejacking is called as bluejackers. The only way to not to be bluejacked is to disconnect Bluetooth.

Bluebugging: This allows skilled individuals to access the mobile phone commands using Bluetooth wireless technology without notifying or alerting the phones user. This vulnerability allows the hacker to initiate phone calls, send and receive text messages, read and write phone book contacts, eavesdrop one phone conversations, and connect to the internet.
Bluesnarfing: The information that can be accessed in this manner includes the phone book, images, calendar and IMEI (International Mobile Equipment Identity). Only specific folder BT enabled devices are susceptible to bluesnarfing.

General applications:

• Data and voice access points: Bluetooth facilities real-time voice and data transmissions by providing effortless wireless connection of portable and stationary communications devices.
• Cable replacement: Bluetooth eliminates the need for numerous, often proprietary, cable attachments for connection of practically any kind of communication device. Connections are instant and are maintained even when devices are not within line of sight. The range of each radio is approximately 10m, but can be extended to 100 m with an optional amplifier.
• Ad hoc networking: A device equipped with a Bluetooth radio can establish instant connection to another Bluetooth radio as soon as it comes into range.

• A single handset can work as an intercom in the office, as a PSTN phone whenever an access point to the PSTN is available, and as a mobile.
• The Bluetooth link does not need the line-of-sight. So a mobile could connect to a laptop even while it is in the briefcase and allow access to such facilities as e-mail.
• Seamless connectivity between the user’s PDA, laptop, and mobile allows applications to automatically update and synchronize schedules and other data when modifications are made on one device.
• Wireless headset allows users to access mobile and audio services even while the device is in their pocket. Thus hands-free operation is possible.
• Hands-free devices allow users to access their phones without letting their hands off the steering wheel.

A major problem that a Bluetooth technology face is that the federal communication commission (FCC), US are looking at expanding the range of devices that use the same radio frequencies as Bluetooth devices. That would interfere communications between Bluetooth enabled devices. There are also concerns about use of Bluetooth on airplanes. While cell phones and pagers are usually turned off in flight bluetooth has been designed to maintain uninterrupted connections even while in motion.
Designed as a cable-replacement technology, Bluetooth wireless technology is well suited to the connectivity requirements of WPANs composed of portable computers, PDAs, mobile phones, and printers. It is ideally suited to mobile devices (particularly PDAs) because of their small size, low power requirements, and applications (mobile phone wireless WAN connectivity, peer-to-peer business card or calendar exchange, and wireless synchronization). As the technology matures, implementations increase, and native operating system support becomes available, interoperability and ease-of-use issues should diminish. Industries are committed to provide Bluetooth solutions that meet customer needs, have been thoroughly tested for compliance, and coexist with Wi-Fi networks. The possibility for new applications is very exciting with this versatile technology. The Bluetooth communication device will thus be a small, low powered radio in a chip that will talk to other Bluetooth enabled products. Bluetooth has been designed to solve a no. of connectivity problems experienced by the mobile workers & consumers. Thus, this technology helps make the electronic devices more user-friendly.

• “Wireless Communications and Networks “ by William Stallings. • “Electronics for You” July, 2002 issue & June 2001. • •
